Intelligent Solution for Laser Engraving of Rubber Tires

• How to improve the appearance of tires?

• How to quickly and cost-effectively achieve personalized customization of tire surface information?

• Due to the simplicity of the vulcanization tire number steel tag and cycle label processes, which are prone to imitation, how can we break the deadlock?

• Steel tags are consumables and require manual embedding, resulting in low efficiency. How can we reduce costs?

• Mold damage requires regular maintenance. How can we reduce costs?

• Workers are difficult to recruit. How can we tackle the challenges of recruitment and labor utilization?

• Intelligent manufacturing has become a trend. What strategies do rubber tire companies have?

• With numerous product models, can automation achieve common-line production?

• How to achieve effective management of market fleeing goods?

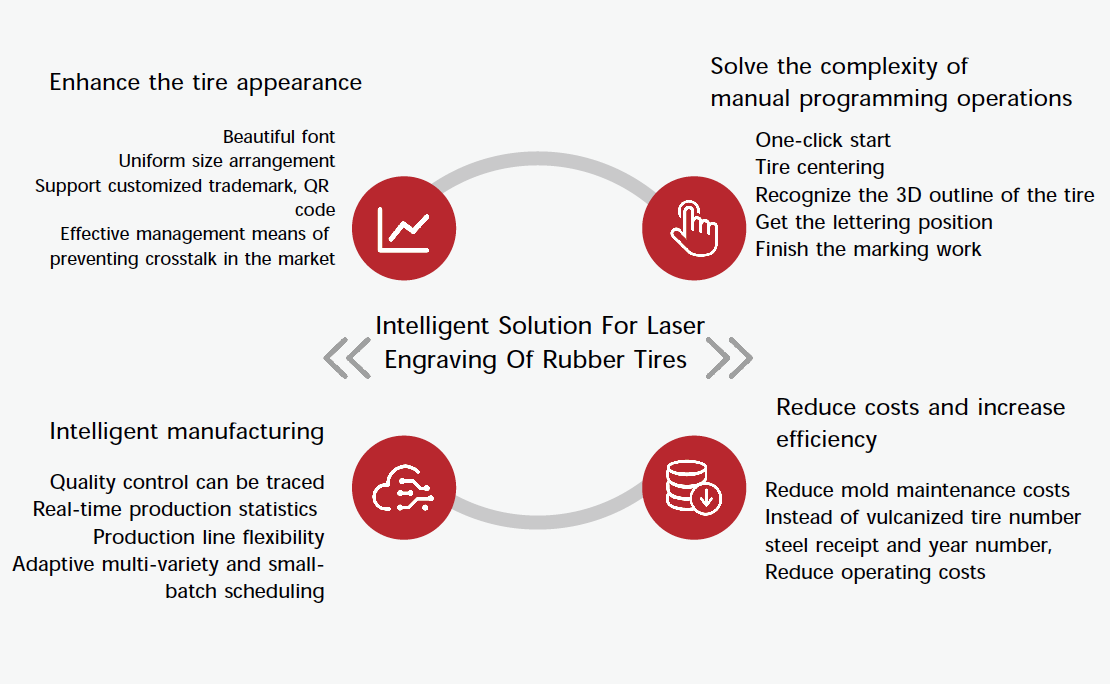

Advantages of the Solution

• Simple Process Flow

• Safe Human-Machine Collaboration

• Quick Laser Engraving

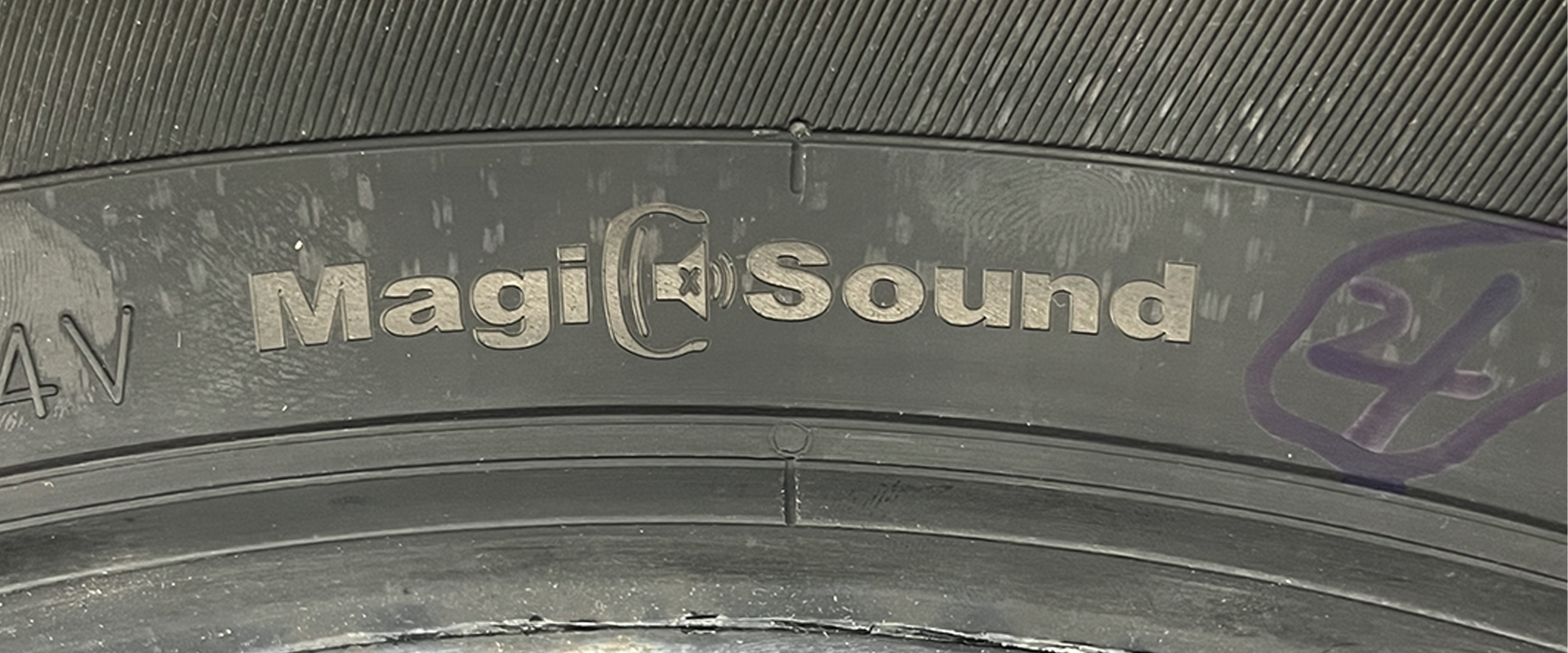

• Tire new laser engraving process

The main content of solution from Shanghai GOOD Intelligent:

The intelligent solution for laser etching on rubber tires mainly consists of a Six-axis DOF robot, a 3D+AI laser vision system, and a laser optical path control system. Our independently developed laser etching process replaces traditional die-cutting technology. The standard production cycle time is 15 to 23 seconds, with clear, beautiful, smooth, and non-sticky edges. To eliminate the phenomenon of cycle brand overflow, reduces the repair rate, improves product appearance, and completely eliminates the material, labor, and error correction costs caused by the traditional cycle tag and steel tag processes. It also increases the utilization rate of vulcanizers and significantly improves production efficiency. The high flexibility of intelligent robots enables full coverage of steel-bodied tire products and semi-steel tire products, supporting a wide range of product compatibility. The use of nanosecond flash photography technology ensures the accuracy of etching positions and the efficiency of the production cycle. The 3D+AI laser vision system realizes precise positioning of XYZ coordinates at any position on the tire after 3D laser modeling, completely solving the phenomenon of non-standard engraving and different depth caused by tire curvature and other problems. It also allows for laser customization and marking at any specified position. Support for multiple communication protocols and real-time integration with MES and WMS systems enables data sharing and effectively improves the factory's digital and intelligent management level. This solution can flexibly achieve DIY personalized customization, such as etching anti-diversion QR codes and customizing small-batch, personalized logos. This allows the manufacturing department to easily handle multi-variety, small-batch orders without increasing costs.

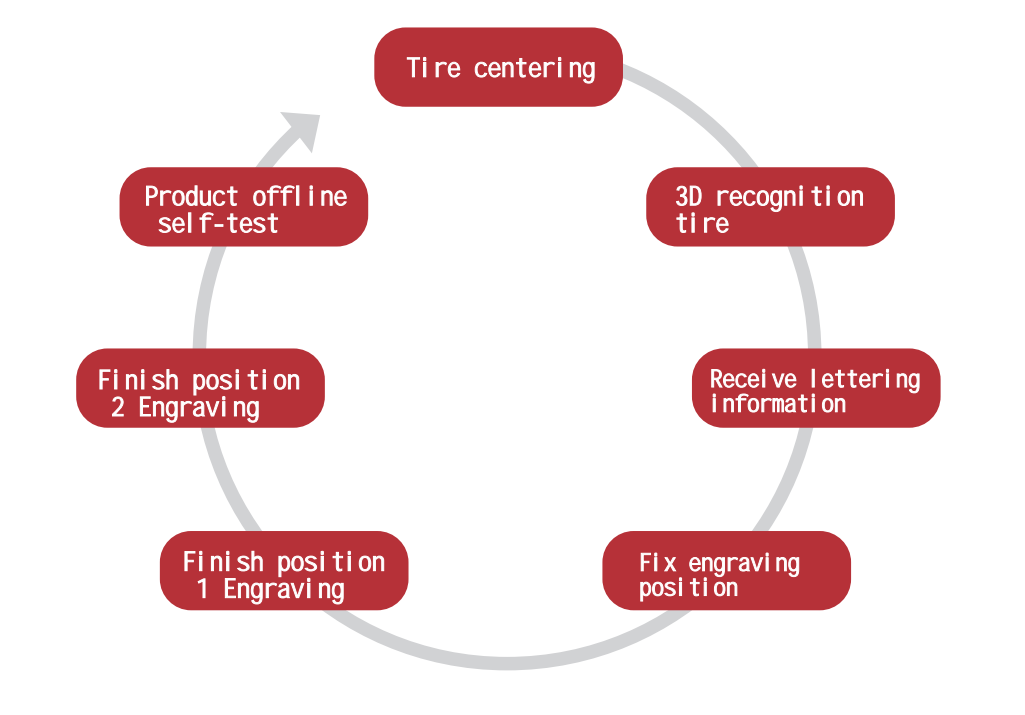

Production Process

1. Automatic positioning the tire center

2. 3D automatic recognition to obtain information for engraving

3. Positioning the location for engraving

4. Robot completes the engraving

5. Automatic self-inspection and offline

Core Technologies

1、Laser Engraving Control System

• Connecting MES system

• Robotics Technology

• Laser Control

• 3D Vision Control

• Transmission Mechanism Control

2、Robot Motion Control

• Kinematics, Dynamics (Fast, Stable, and Precise)

• Imported Core Components

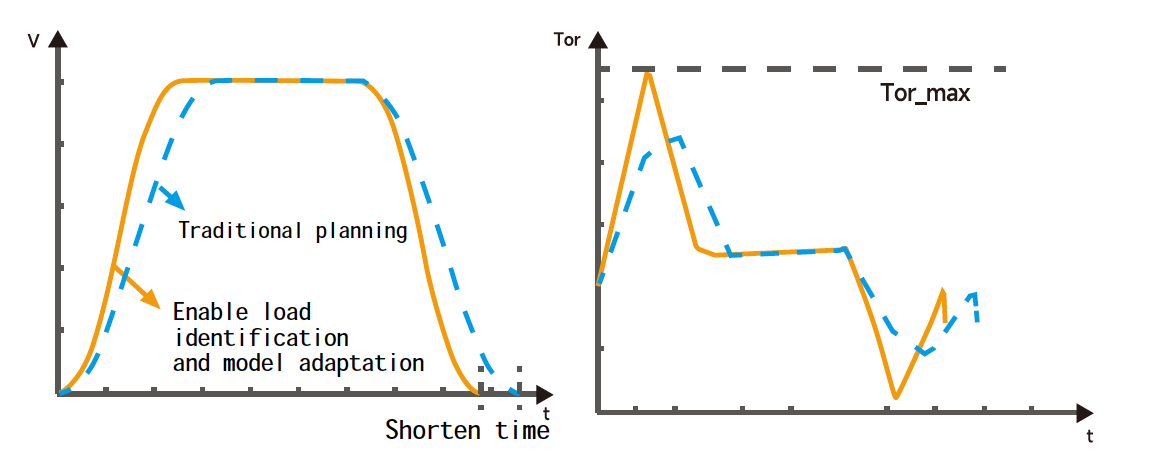

• Robot flyshot Technology (nanosecond level)

3、Laser Beam Motion Control

• Supports high-temperature and abnormal self-check functions

• Capable of customizing different fonts and trademarks

• Imported light source, stable optical path, and long lifespan

4、3D+AI Image Algorithm

• Automatic identification of tire 3D contours

• OCR automatic conversion

• Recognize characters such as DOT

5、Positive and Negative Pressure Dust Removal Device

• Satisfies environmental regulations

• Removes unpleasant odors

• Particle recovery

• Supports engraving of any font, concave and convex surfaces, logo, QR codes, etc. Supports importing of various formats such as Word, AutoCAD, etc.
