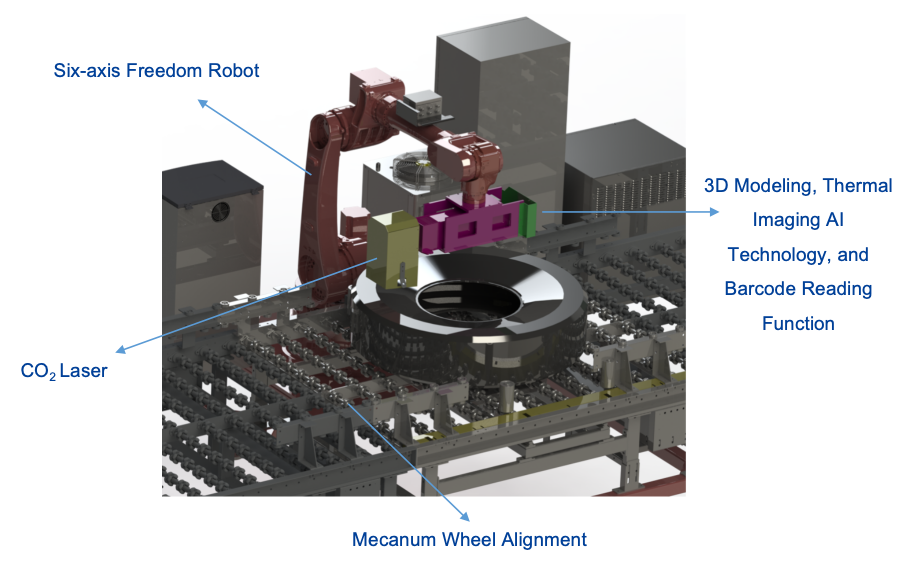

Robot Laser Engraving Workstation of Tires

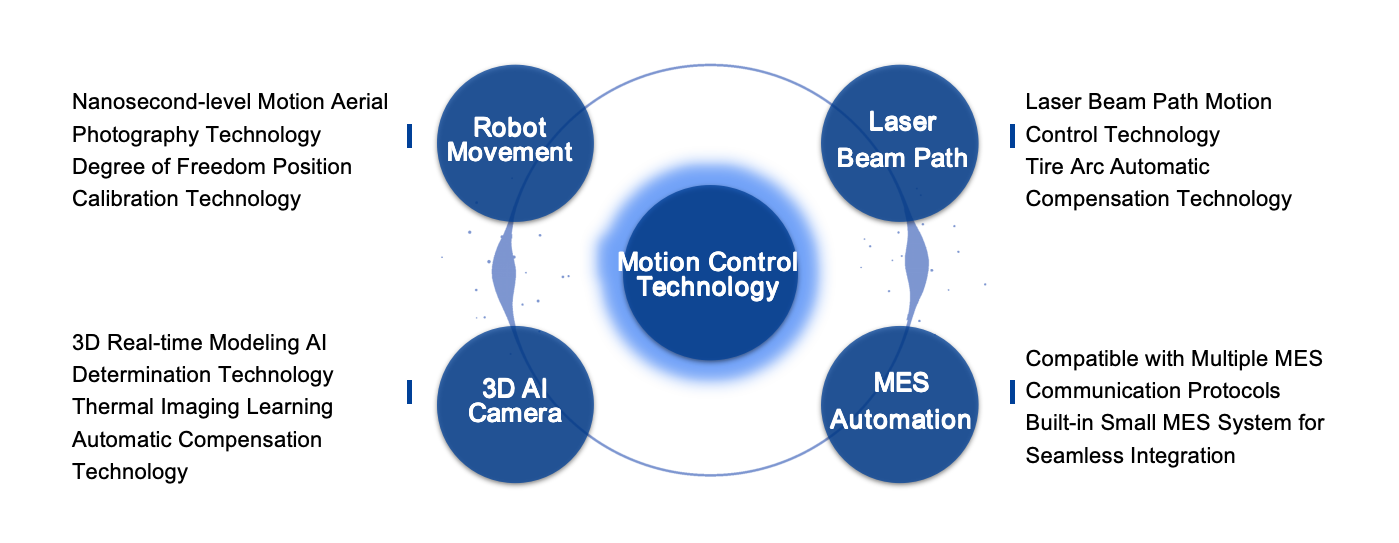

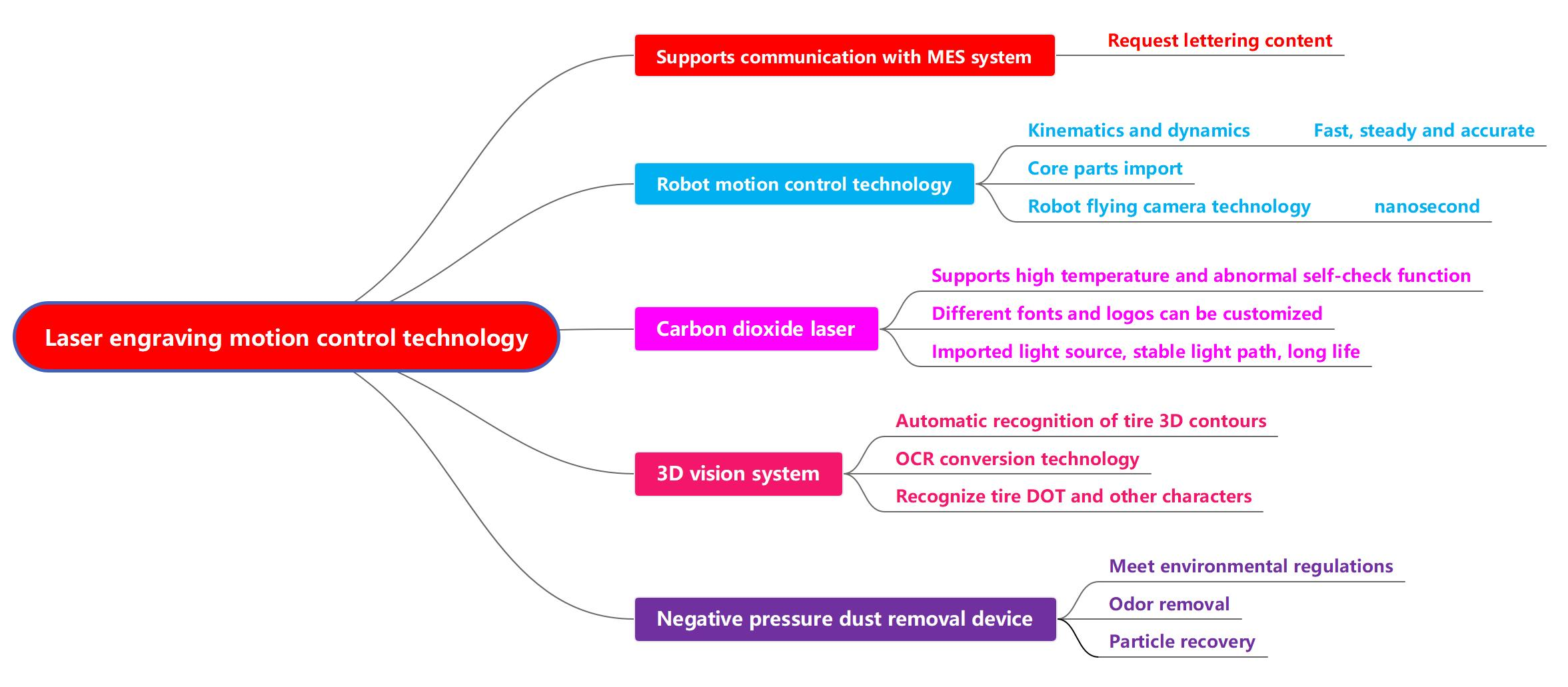

Production Process Flow:

• Automatic tire positioning

• 3D automatic AI recognition, MES autonomous interaction

• Four-in-one autonomous determination of tire curvature

• Robot degree of freedom position finding, laser engraving

• Automatically detecting finished tires and offline

Application scope:

• Truck Bus Radial tyre (TBR), Passenger Car Radial tyre(PCR), and engineering tires

• Outer diameter of tire: 280-1400mm, can be customized




• Tyre bead diameter: 280-700mm, customizable

• Tire section width: 145-480mm, customizable


• Maximum weight of tire: 150kg, customizable


• Engraving content:
  Support for engraving in any font, both Chinese and English, as well as engraving in both positive and negative characters, and for files such as Word, CAD, and LOGO
